    Self Propelled Concrete Handling Equipment 3.5m3 Self Loading Transit Mixer

    Ask Lasest Price
    Brand Name : SCEC
    Model Number : SCEC-35
    Certification : ISO CCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 units per month
    Delivery Time : Within 25-30 work days after order confirmed
    • Product Details
    • Company Profile

    Self Propelled Concrete Handling Equipment 3.5m3 Self Loading Transit Mixer

    Self Propelled Concrete Handling Equipment 3.5m3 Self Loading Transit Mixer


    SCEC Concrete Handling Equipment 3.5m3 Mobile self-loading concrete mixer truck

    Introduction of SCEC 3.5m3 Mobile self-loading concrete mixer truck with bidirectional driving

    Self-propelled concrete mixer truck is a kind of concrete mixer truck that integrates automatic loading, mixing, transportation and automatic unloading into a small project. High-power diesel engine and hydraulic torque converter are adopted to ensure the power required for walking and stirring at the same time.

    The main structure consists of: walking chassis, engine, torque converter, front and rear double drive bridges, loading device, feeding hopper, unloading hopper, extended unloading hopper, frame, mixer, planetary reducer for mixing, hydraulic system It consists of electric control system and automatic water supply system.

    Technical specification of SCEC 3.5m3 Mobile self-loading concrete mixer truck with bidirectional driving

    Machine nameSCEC 3.5m3 Mobile self-loading concrete mixer truck
    Diesel engineModel:YCD4J22G
    Total displacement: 4330cc Number of cylinders: 4-cylinder inline
    Spray: Inline, Instrument Control
    Cooling: water-cooled dry air filter
    Maximum power: 85KW (116HP)
    Maximum torque: 390Nm @ 2800rpm
    Axles and tiresFront axle, steering: Isuzu axle
    Equipped with planetary reduction gears on the axle and flanged transmission
    Rear axle(+-28°)
    Tyre:15.5/65-18
    Max.loading weight:5150kg
    350kPa
    Electrical Systemgenerator:28v-1500Wa(53.5A)
    Battery:2x12V-60AH(272A)
    Road lighting system
    Steering2-wheel steering, assisted by double-displacement load-sensing power steering system on 2 steering wheels
    4 * 4 four-wheel driveHydraulic Pitcher Transmission, Open Hydraulic Gear Oil Pump, Reverse Control
    2 forward gears 2 reverse gears
    First gear: 0-7 km / h; Second gear: 7-20 km / h
    water supply systemSelf-priming 24V large-capacity water pump with speed suction function
    Flow rate 90 liters / minute
    Maximum capacity 2X285 liters
    High pressure water pump washing vehicle
    The screen shows the amount of water entering and the amount of water entering the drum
    Braking SystemInternal in-wheel service brake and emergency brake on 4 wheels
    Small servo pump activation on independent dual circuits
    Negative pressure parking brake
    Front axle with internal wheels
    Maintenance fill volumeFuel tank: 190 liters
    Total hydraulic system capacity: 190 liters
    Engine oil: 16 liters
    weightOperating weight: 8500 kg
    Maximum total weight: 16900 kg
    Load capacity: 7600 kg
    Mixing and unloadingRoller geometric capacity: 5445 liters
    Drum rotation speed: 16 rpm
    Concrete output: 3.5 cubic meters / tank
    hydraulic systemGear pump: Permke
    Maximum flow: 63/50 liters // 20.3 liters / minute (triple pump)
    Maximum pressure: 42MPa
    loadLoading arm with automatic weighing sensor
    Capacity: 600 liters
    The number of loadings required per loading: 5 times
    CabHeating / cooling system
    Humanized seat

    Features of SCEC 3.5m3 Mobile self-loading concrete mixer truck with bidirectional driving

    1. Yuchai engine,Strong power

    2. Cab, one-button start, simple operation and full functions


    3. Tank body: double spiral mixing blades, the tank side discharge

    4. Bucket: dual hydraulic control, more flexible and fast loading

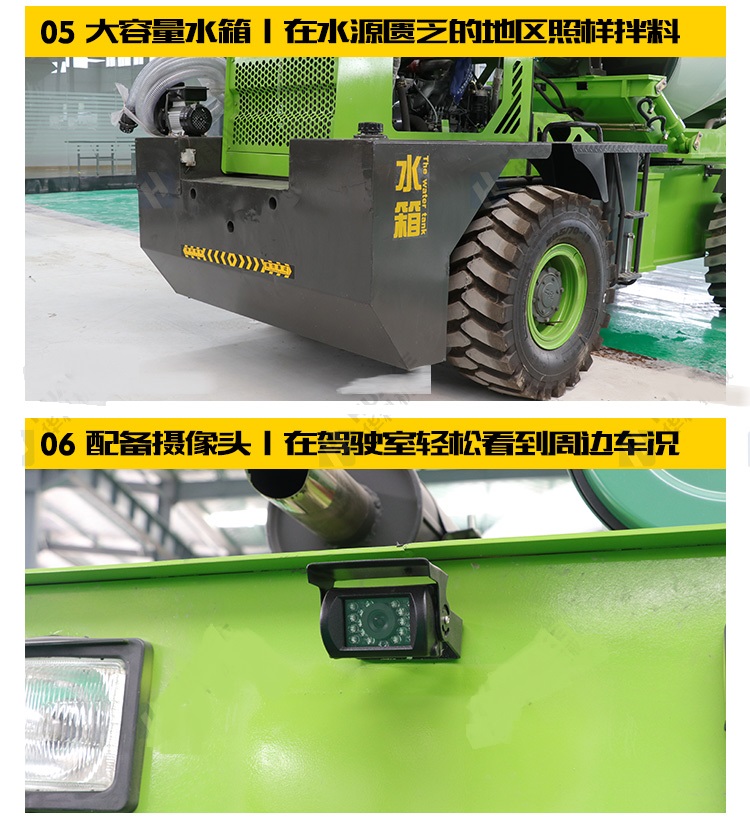

    5. Large-capacity water tank for normal use in places where water resources are scarce

    6. Equipped with a camera: easily see the surrounding car conditions in the cab
