    XCMG Hydraulic Excavation Equipment XE150D 15 Ton Excavator With 0.61M3 Bucket

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : XE150D
    Certification : ISO CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50 Unit/Units per Month
    Delivery Time : 30-35 work days
    • Product Details
    • Company Profile

    XCMG Hydraulic Excavation Equipment XE150D 15 Ton Excavator With 0.61M3 Bucket

    XCMG Hydraulic Excavation Equipment XE150D 15 Ton Excavator With 0.61M3 Bucket


    XCMG Hydraulic Crawler Excavator XE150D 15 Ton Excavator With 0.61M3 Bucket


    Product description of Hydraulic Crawler Excavator XE150D


    Main parameters:

    Bucket capacity 0.61CBM (standard)

    Operating weight:14400kgs

    Max digging height:6181mm

    Max digging reach: 8296mm


    Main configuration

    CUMMINS 4BTAA3.9 engine, 85.4/2200 kw/rpm

    Hydraulic system

    Shock absorber

    Optional parts:

    Breaker / Fast change devices


    We devotes to Chinese top brands construction machinery and all side after service supplying. We are in Xuzhou city, the same with the world-famous XCMG, here we have the best superiority of Chinese construction machines. Based on the big support from XCMG and competitive resource of construction machines, Focus Industry Group comes to be a professional supplier of Chinese construction machinery. Our business covers the countries in Africa, Middle East, South America, Asia and Euro, etc.


    Advantage of Hydraulic Crawler Excavator XE150D

    1. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.

    2. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.

    3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

    4. The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.

    Specifications of Hydraulic Crawler Excavator XE150D

    DescriptionUnitParameter value
    Operating weightkg14600
    Bucket capacity0.32~0.71
    EngineModelEngine
    QSF3.8
    StyleDirect injection---
    Four strokes---
    Water cooling---
    Turbo-charging---
    Air to air intercooler---
    No. of cylinders---4
    Output powerkW/ r/min93/2200
    torque/speedN.m500/1300
    DisplacementL3.76
    Travel speed(H/L)km/h5.3/3.2
    Main performanceGradeability%70
    Rotary speedr/min11.7
    Ground pressurekPa37
    Bucket digging forcekN106.9
    Arm digging forcekN73.4
    Hydraulic systemMain pump--K7V63DTP
    Rated flow of main pumpL/min2×123.5
    Main safety valve pressureMPa34.3/37
    Pressure of pilot systemMPa3.9
    Oil CapacityFuel tank capacityL260
    Hydraulic tank capacityL105
    Engine oil capacityL11
    Overall lengthmm7795
    Appearance sizeOverall widthmm2590
    Overall heightmm2900
    Width of platformmm2490
    Length of crawlermm3658
    Overall width of chassismm2590
    Width of crawlermm600
    Wheel base of crawlermm2910
    Crawler gaugemm1990
    Clearance under counterweightmm948
    Min. ground clearancemm477
    Min. rear-end swing radiusmm2325
    Max. digging heightmm8649
    Working scopeMax. dumping heightmm6185
    Max. digging depthmm5535
    Max. digging depth at the range of level 8 feetmm5324
    Max. vertical wall digging depthmm4697
    Max. digging reachmm8304
    Min. swing radiusmm2445
    StandardLength of boommm4600
    WorkerLength of armmm2520
    Bucket capacity0.61
    OptionalLength of boommm
    Length of armmm2100/3010
    Bucket capacity0.32/0.4/0.71
    0.52

    OUR SERVICE

    Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.

    Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts with good prices, quick response and professional service.

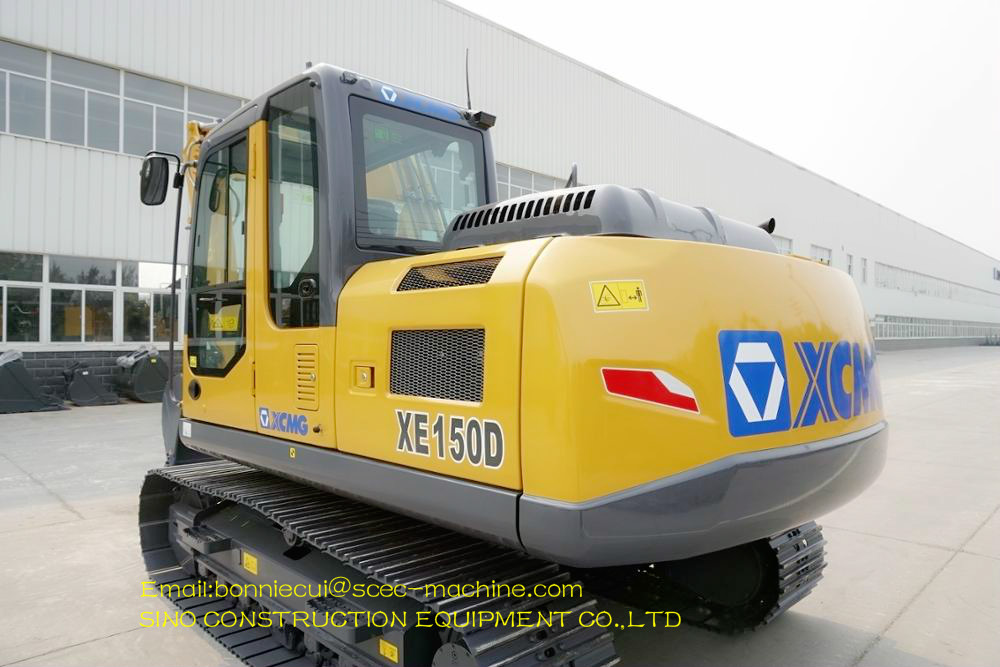

    Product Show
